How to install the tent in 8 easy steps




01

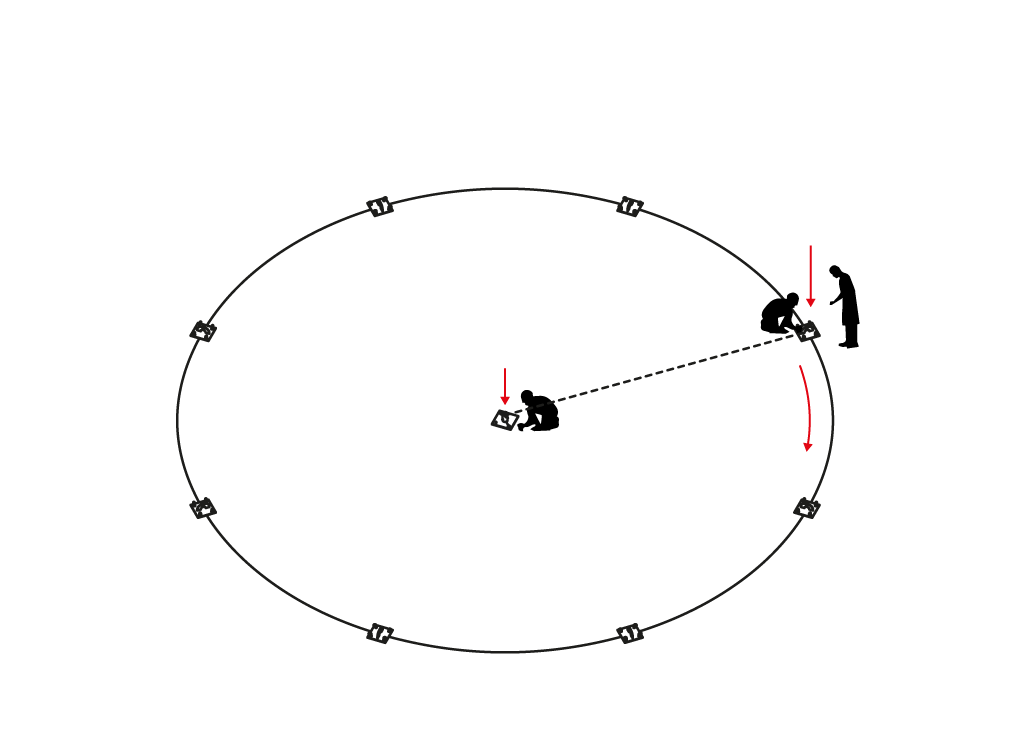

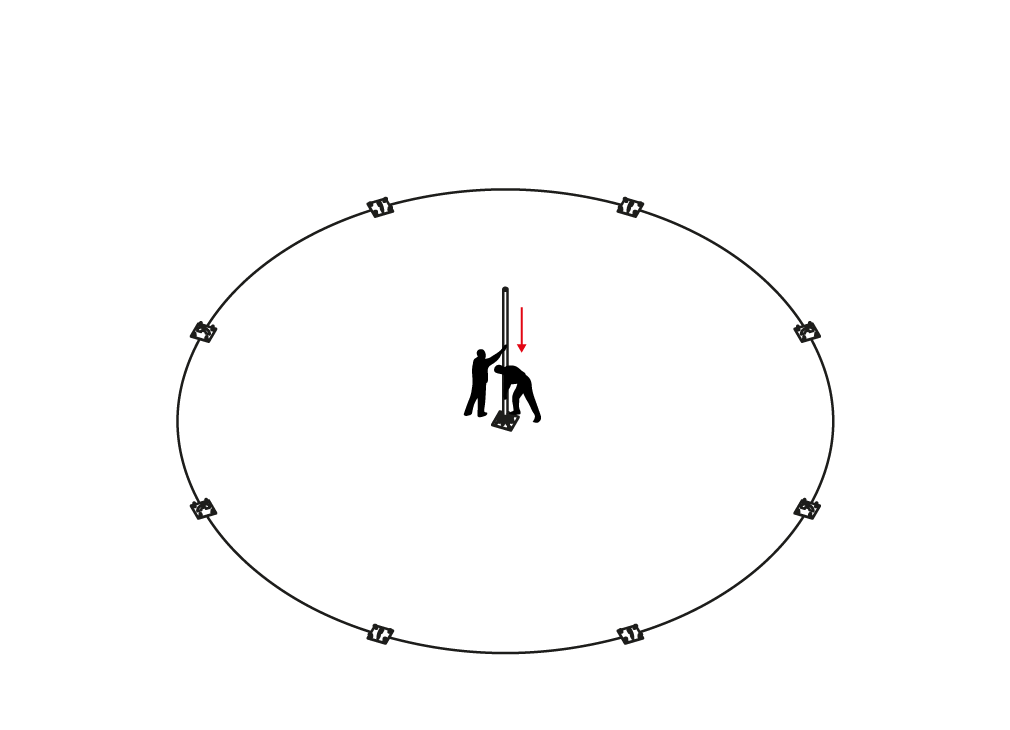

After placing the central anchorage is possible to perfectly place the secondary ones by using a pre-sized cord.


02

The aluminum structure is covered with a water and strong wind resistant, fire proof textile.


03

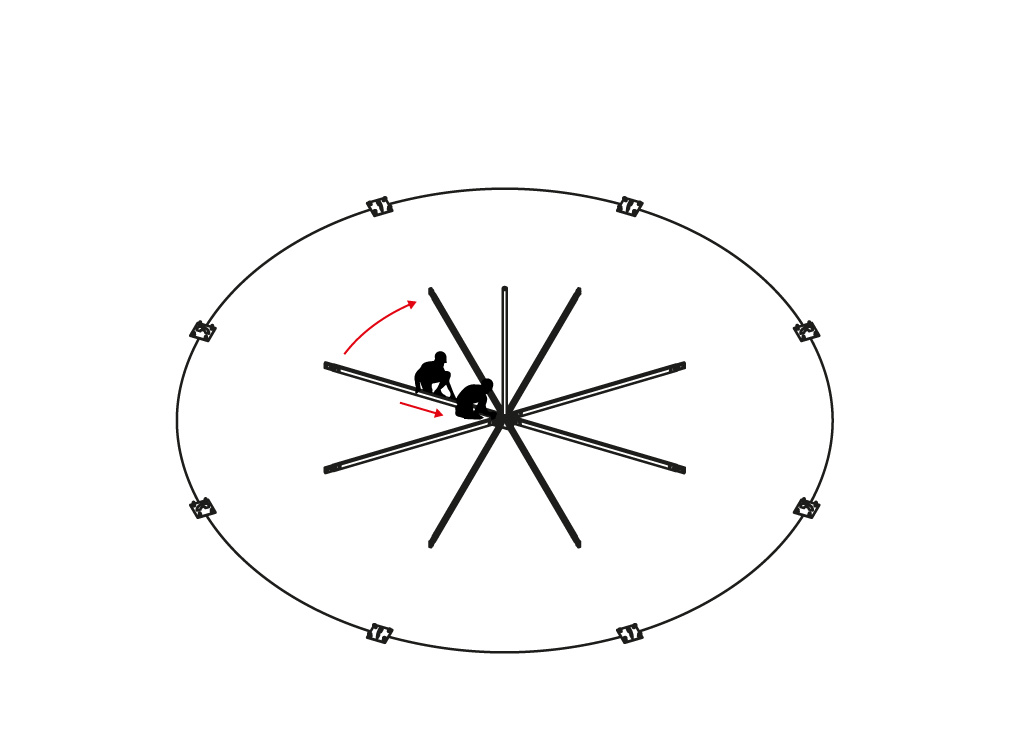

The first aluminium beam’s elements are attached to the central pole joint.


04

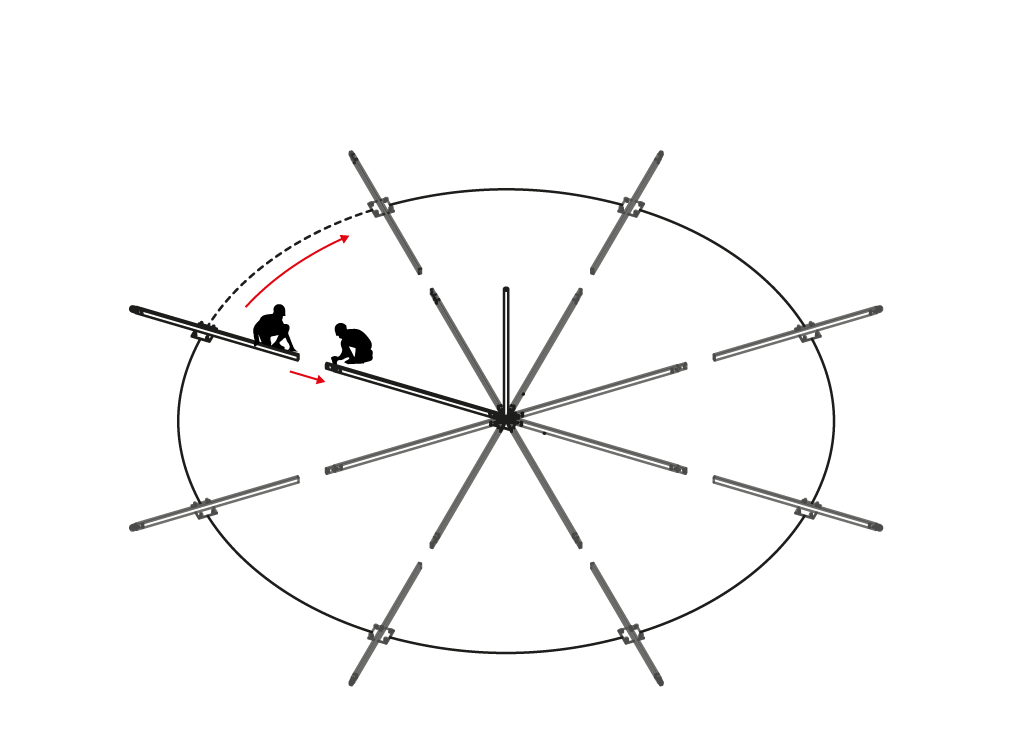

The second aluminium elements are linked together completing the 8 meters beam.



05

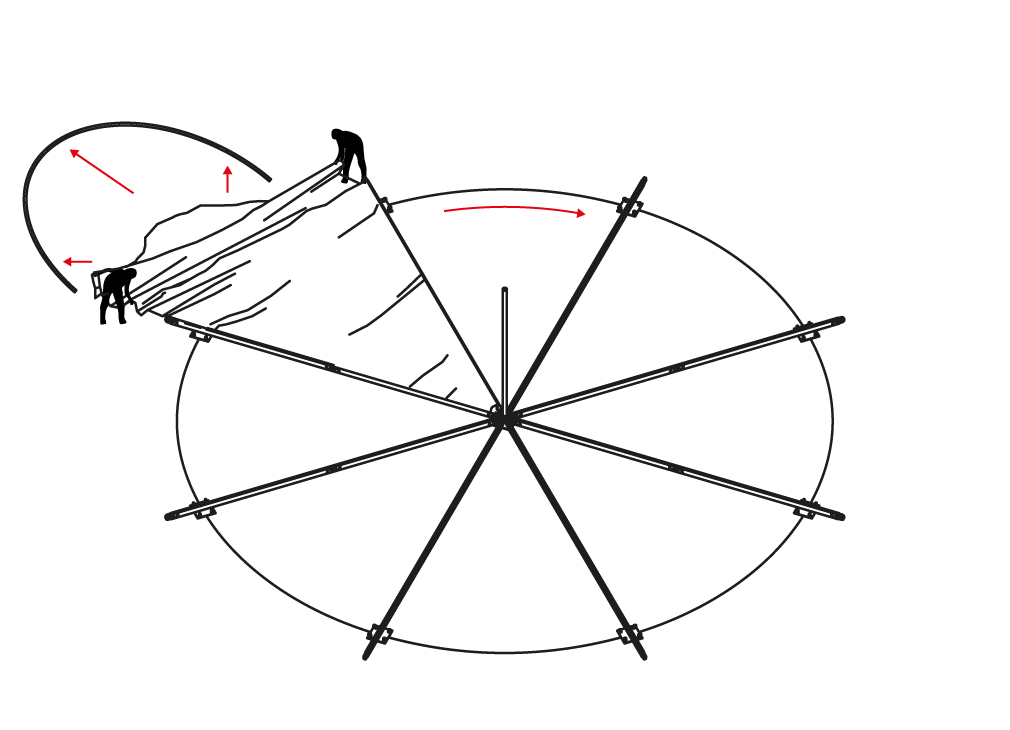

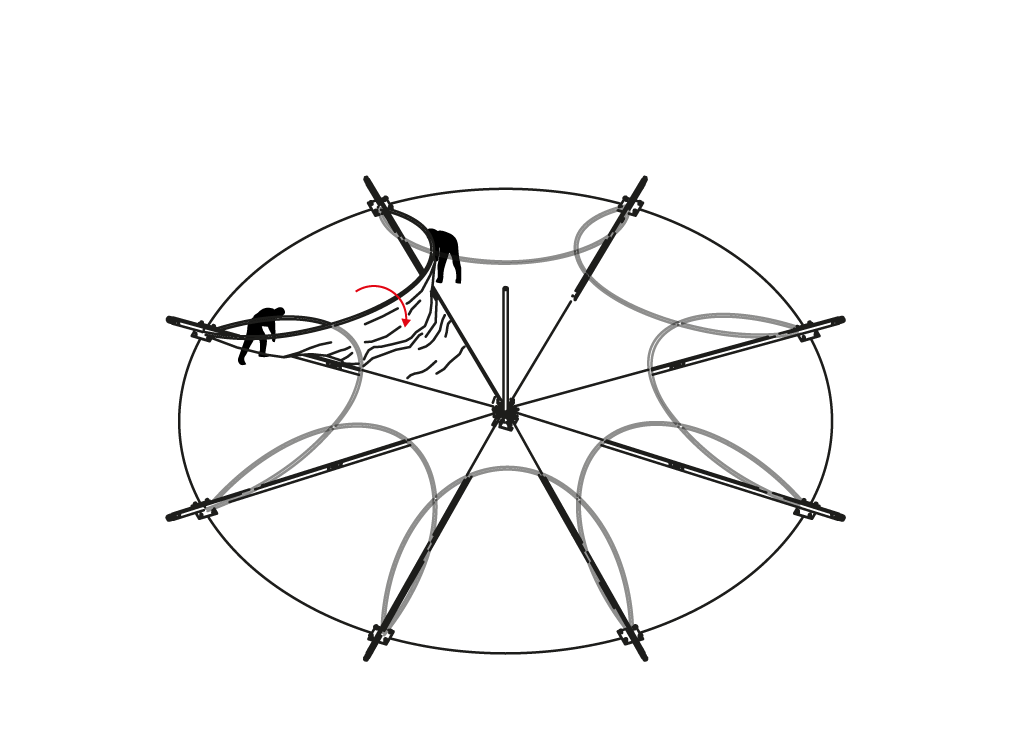

The textile is inserted into the beam’s guides and then connected to the arches.


06

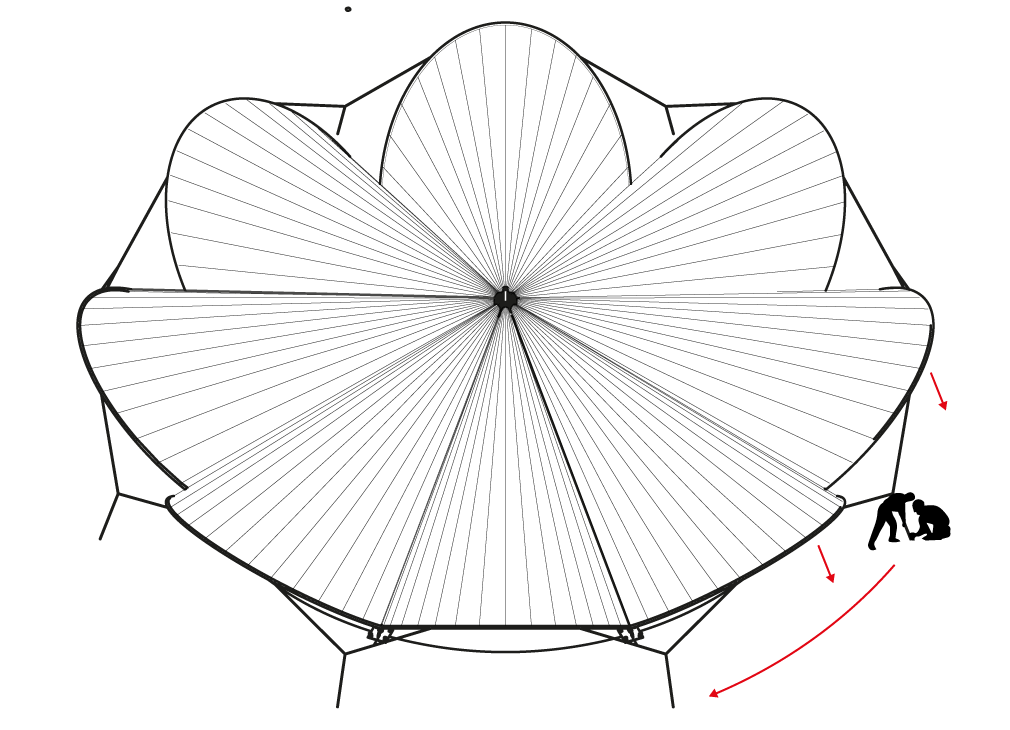

The arches are folded to simplify the lifting of the structure.


07

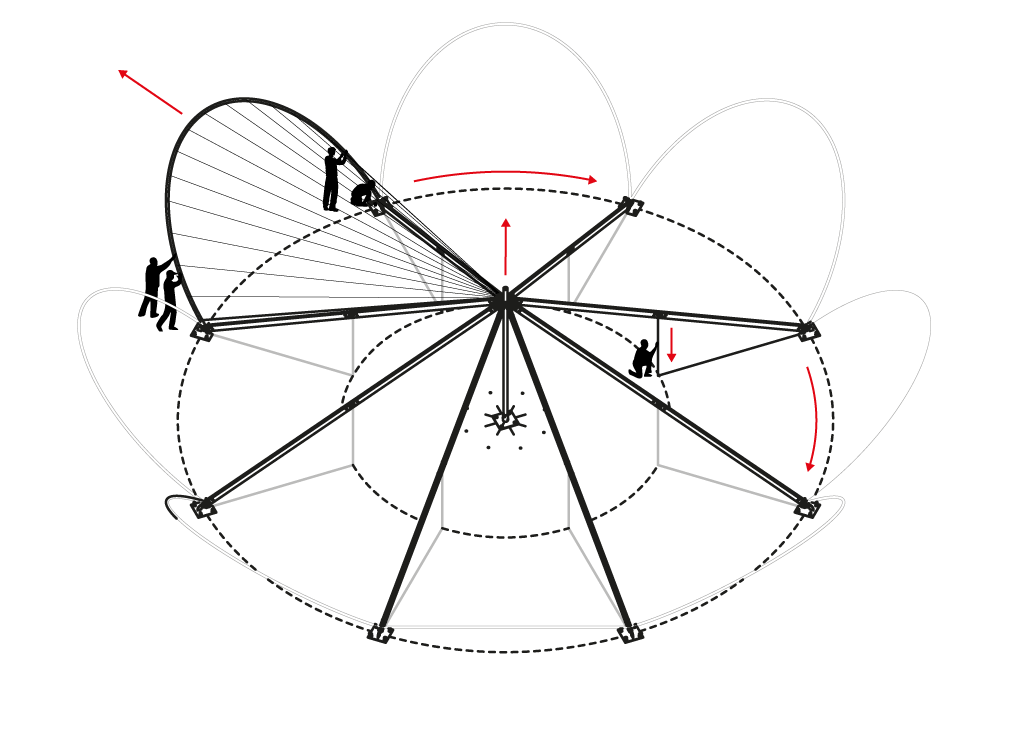

The structure is lifted and fixed on the right height. Secondary pillars are connected to the beams providing more stability.


08

When the entire structure is open, tie-rods are connected to the ground holding in place the structure.
